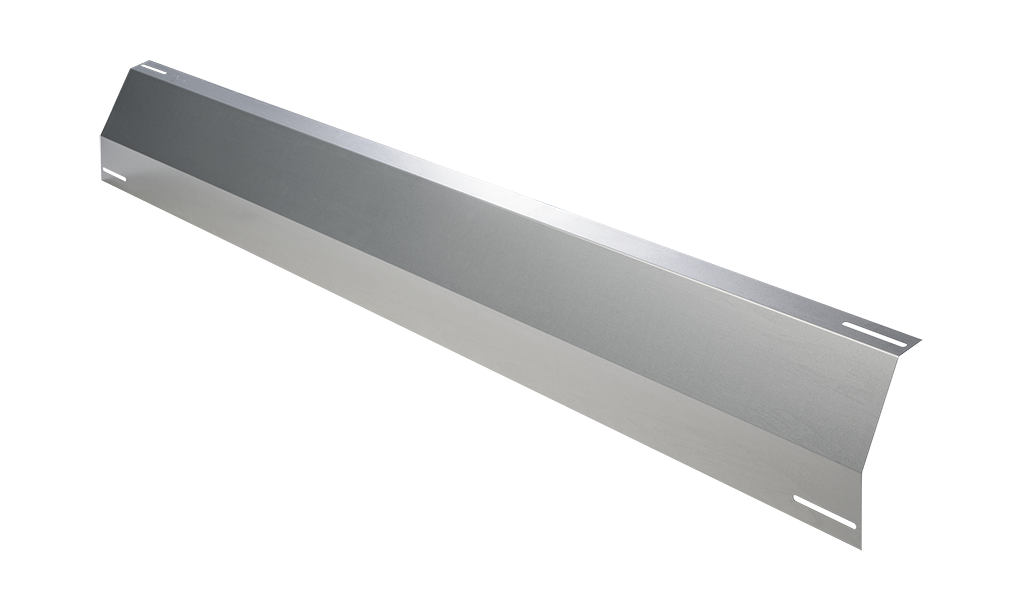

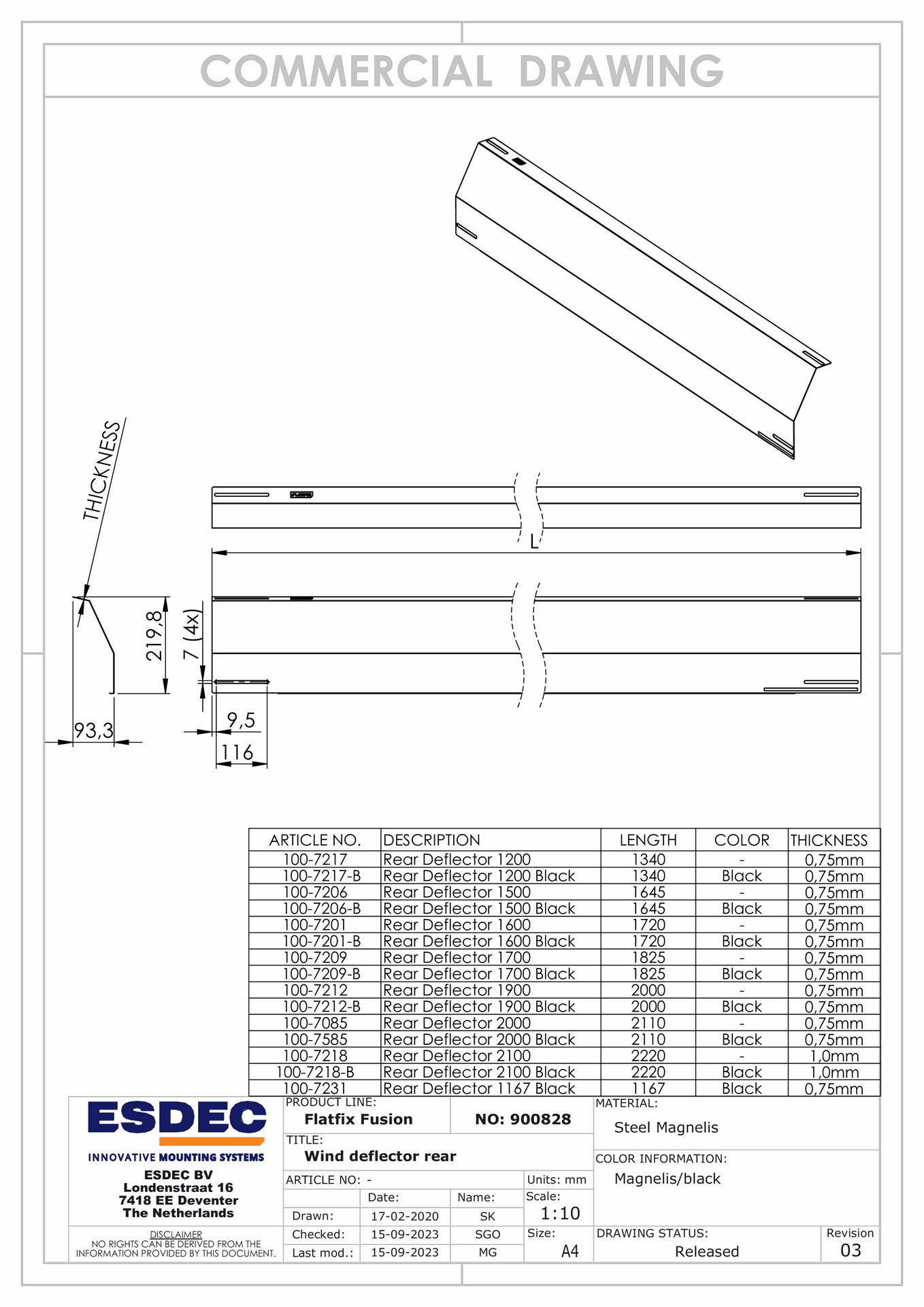

FLATFIX FUSION WIND DEFLECTOR REAR 1900 MM
Product ref: 1007212
TriSole at a glance Triangular mounting system for flat-roofs, including those of corrugated and trapezoid sheet metal. Suitable for nearly all normal and particularly oversized framed PV-modules Variable mounting system for module frame heights of 30-50mm Durable components made of high-grade aluminium and stainless steel Alternative system for flat-roof mounting The TriSole system is ideal for installing solar systems on flat-roofs of corrugated and trapezoidal sheet or for mounting oversized framed PV-modules. The TriSole triangular mounting system is either fastened directly onto the north-south or east-west rails or heavy duty panels or attached to the corrugated or trapezoidal sheet roofs using hanger bolts. Many system parts are pre-assembled at factory and the other components are installed by simply sliding and clicking them on. The elevated mounting is possible on an installation width of up to 10 meters. The TriSole components are also widely used with the field proven VarioSole system from Renusol and stand for simple, fast and secure assembly. Price for 1 Triangle (rails etc. are to be ordered separately)

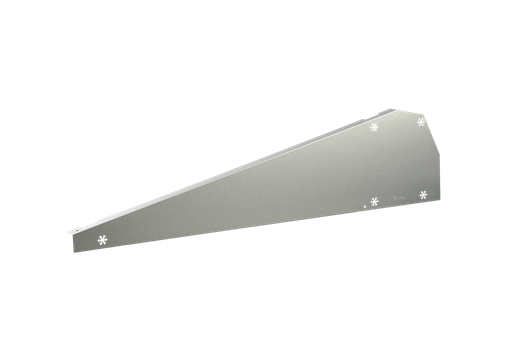

![[1007225] FLATFIX FUSION WIND DEFLECTOR RIGHT](/web/image/product.product/19114/image_512/%5B1007225%5D%20FLATFIX%20FUSION%20%20WIND%20DEFLECTOR%20RIGHT?unique=7d75a6d)
![[1007213] FLATFIX FUSION BALLAST HOLDER 1900 MM](/web/image/product.product/9015/image_512/%5B1007213%5D%20FLATFIX%20FUSION%20BALLAST%20HOLDER%201900%20MM?unique=7d75a6d)

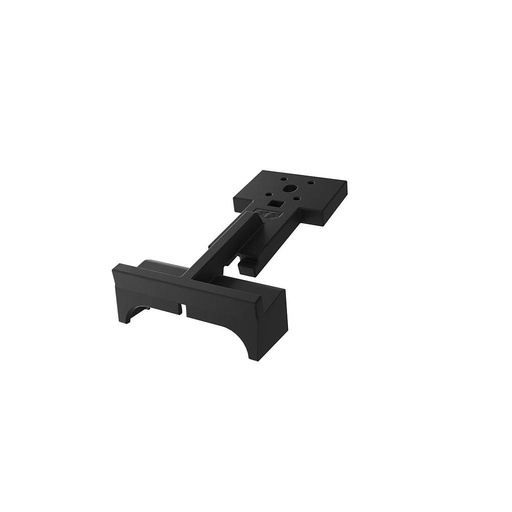

![[1007022-WP] FLATFIX FUSION BASE ELEMENT LOW EXTENSION](/web/image/product.product/19275/image_512/%5B1007022-WP%5D%20FLATFIX%20FUSION%20BASE%20ELEMENT%20LOW%20EXTENSION?unique=7d75a6d)
