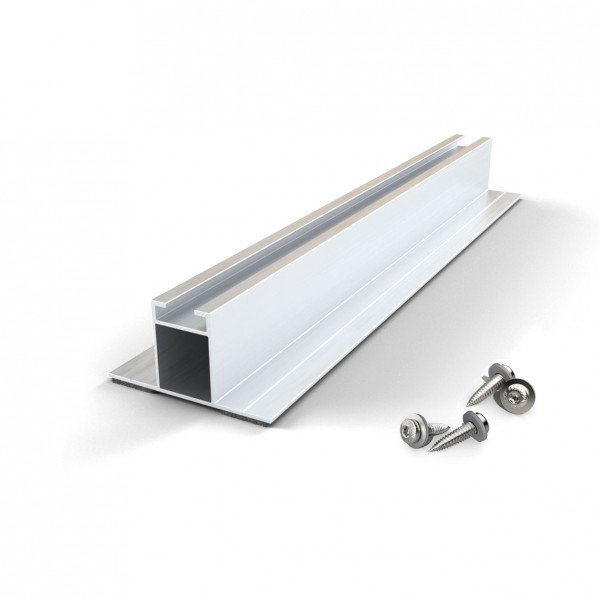

Renusol Ms+ portrait set

With a mounting time of less than 10 minutes per kWp and a weight below 1.3 kg per kWp, MetaSole sets new standards for the installation of PV systems on trapezoidal metal sheet roofs made of steel and aluminium sheet. The compact system allows the quick installation of framed PV modules on trapezoidal sheet metal roofs and corrugated iron roofs. For direct mounting of the modules only four different components are required: a weight-optimized clamping foot, two specially coated thin sheet metal screws, one terminal and one middle clamp. The screw with material displacing tip saves the pre-drilling, this results in an extremely short installation time. The low volume, the elimination of mounting rails, the few components and reduce to the absolute minimum lead to very low investment costs of purchase. System features For roofs with trapezoidal and corrugated sheet metal A few assembly components, no mounting rail Waterproof design by clamping feet with pre-installed EPDM rubber Tightness test UB 5.1 / 10-535 MFPA Installation features Quick and easy to assemble in less than 10 minutes per kWp Extremely lightweight at only 1.3 kg weight per kWp Extremely easy to transport with all the parts for 5 kWp in a shoebox Mounting screws without pre-drilling by using material displacing top No drilling template needed Variable height module terminals for module frame heights of 30-50 mm Plant design online by Renusol project configurator or special questions / roof features via application technology: Tel +49 221 788707-29
